Bed Deformation of an S-shaped Channel with SSIIM 1 and non-uniform Sediment Distribution at 90 l/s


model in operation deformed bed

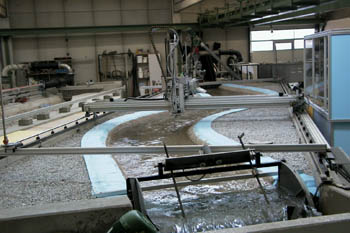

physical model in operation

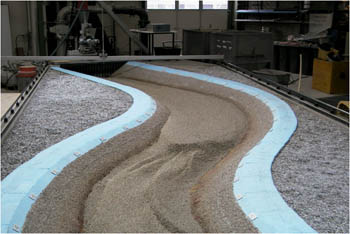

 deformed bed, looking upstream

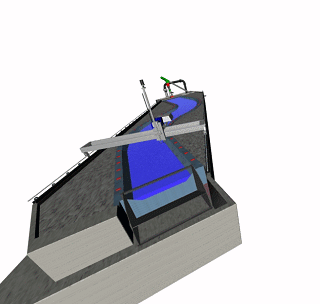

model animation
animation of the physical model, automated measuring equipment
and sediment feeding machine

plan view
grid

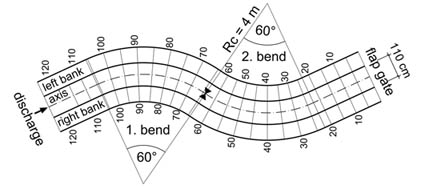

plan view of the model geometry

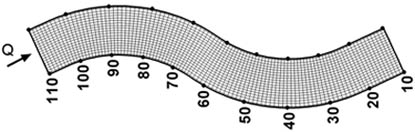

 plan view of the numerical grid
measurement ssiim

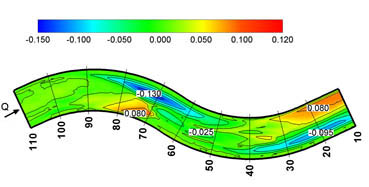

measured bed deformation [m]

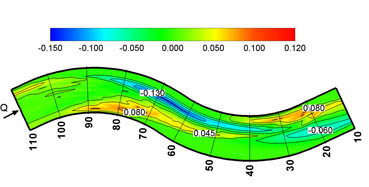

 calculated bed deformation with SSIIM 1 [m]

bed deformation

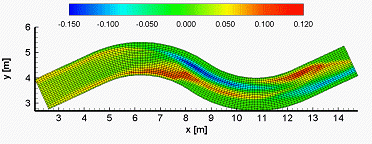

  computed bed deformation [m]
